Product Summary

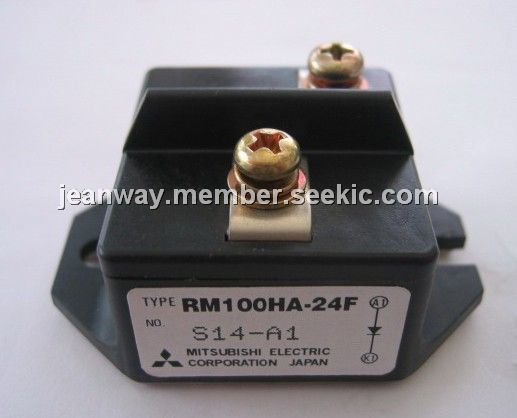

The rm100ha-24f is a MITSUBISHI fast recovery diode module. The applications of the rm100ha-24f include Free wheel use, Welders.

Parametrics

rm100ha-24f absolute maximum ratings: (1)Repetitive peak reverse voltage: 600 V; (2)Non-repetitive peak reverse voltage: 720 V; (3)Reverse DC voltage: 480 V; (4)DC output current: 100 A at Resistive load, TC=75℃; (5)Surge (non-repetitive) forward current: 2000 A at One half cycle at 60Hz, peak value; (6)I2t for fusing: 16.7×103 A2s; (7)Junction temperature: -40 to 150 ℃; (8)Storage temperature: -40 to 125 ℃; (9)Isolation voltage: 2500 V; (10)Weight: 90 g.

Features

rm100ha-24f features:(1)IDC DC current: 100A; (2)VRRM Repetitive peak reverse voltage: 600/1000/1200V; (3)trr Reverse recovery time: 0.8μs; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N), File No. E80271.
