Product Summary

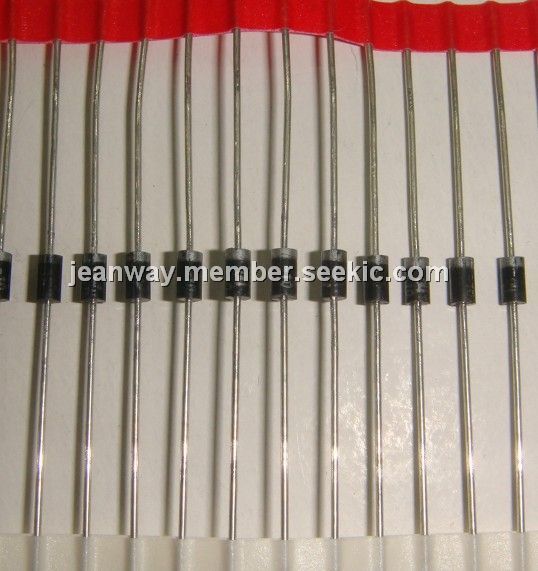

The BZW04-10 is a Transil diode. It provides high overvoltage protection by clamping action. The instantaneous response to transient overvoltages makes the BZW04-10 particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.

Parametrics

BZW04-10 absolute maximum ratings: (1)Peak pulse power dissipation:400W; (2)Power dissipation on infinite heatsink:1.7W; (3)Non repetitive surge peak forward current for unidirectional types:30A; (4)Storage temperature range:-65℃ to +175℃; (5)Maximum junction temperature:175℃; (6)Maximum lead temperature for soldering during 10s a 5mm from case.:230℃.

Features

BZW04-10 features: (1)peak pulse power : 400 W (10/1000μs); (2)STAND-OFF VOLTAGE RANGE :From 5.8V to 376 V; (3)UNI and bidirectional types; (4)low clamping factor; (5)fast response time; (6)UL recognized.

Diagrams

BZW04-10 package mechanical data

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BZW04-102
BZW04-102

Taiwan Semiconductor

TVS Diodes - Transient Voltage Suppressors 102V 400W 5% Uni

Data Sheet

0-5000: $0.04
BZW04-102/54
BZW04-102/54

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 400W 102V Unidirect

Data Sheet

Negotiable
BZW04-102-E3/54
BZW04-102-E3/54

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 400W 102V Unidirect

Data Sheet

0-1: $0.12
1-10: $0.11
10-100: $0.10
100-250: $0.10
BZW04-102HE3/54
BZW04-102HE3/54

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 400W 102V 5% Unidir

Data Sheet

0-3400: $0.10
3400-5000: $0.10
5000-5500: $0.10
BZW04-102HE3/73
BZW04-102HE3/73

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 400W 102V 5% Unidir

Data Sheet

0-1: $0.14
1-10: $0.13
10-100: $0.12
100-250: $0.11
BZW04-10B-E3/73
BZW04-10B-E3/73

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 400W 10V 5% Bidir

Data Sheet

0-1: $0.14
1-10: $0.13
10-100: $0.11
100-250: $0.11
BZW04-10BHE3/54
BZW04-10BHE3/54

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 400W 10V 5% Bidir

Data Sheet

0-3400: $0.10
3400-5000: $0.10
5000-5500: $0.10
BZW04-10-E3/73
BZW04-10-E3/73

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 400W 10V Unidirect

Data Sheet

0-1: $0.12
1-10: $0.11
10-100: $0.10
100-250: $0.10
