Product Summary

The DS80C323-QCD is a fast 80C31/80C32-compatible microcontroller. Wasted clock and memory cycles have been removed using a redesigned processor core. As a result, every 8051 instruction is executed between 1.5 and 3 times faster than the original for the same crystal speed. Typical applications of DS80C323-QCD see a speed improvement of 2.5 times using the same code and same crystal. The DS80C320 offers a maximum crystal rate of 33MHz, resulting in apparent execution speeds of 82.5MHz (approximately 2.5X). The DS80C323-QCD is pin compatible with all three packages of the standard 80C32 and offer the same timer/counters, serial port, and I/O ports. In short, the devices are extremely familiar to 8051 users, but provide the speed of a 16-bit processor.

Parametrics

DS80C323-QCD absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3V to (VCC + 0.5V); (2)Voltage Range on VCC Relative to Ground: -0.3V to +6.0V; (3)Operating Temperature Range: -40℃ to +85℃; (4)Storage Temperature Range: -55℃ to +125℃.

Features

DS80C323-QCD features: (1)80C32-Compatible; (2)High-Speed Architecture; (3)High-Integration Controller Includes: Power-Fail Reset, Programmable Watchdog Timer, Early Warning Power-Fail Interrupt; (4)Two Full-Duplex Hardware Serial Ports; (5)13 Total Interrupt Sources with Six External; (6)Available in 40-Pin DIP, 44-Pin PLCC, and 44-Pin TQFP.

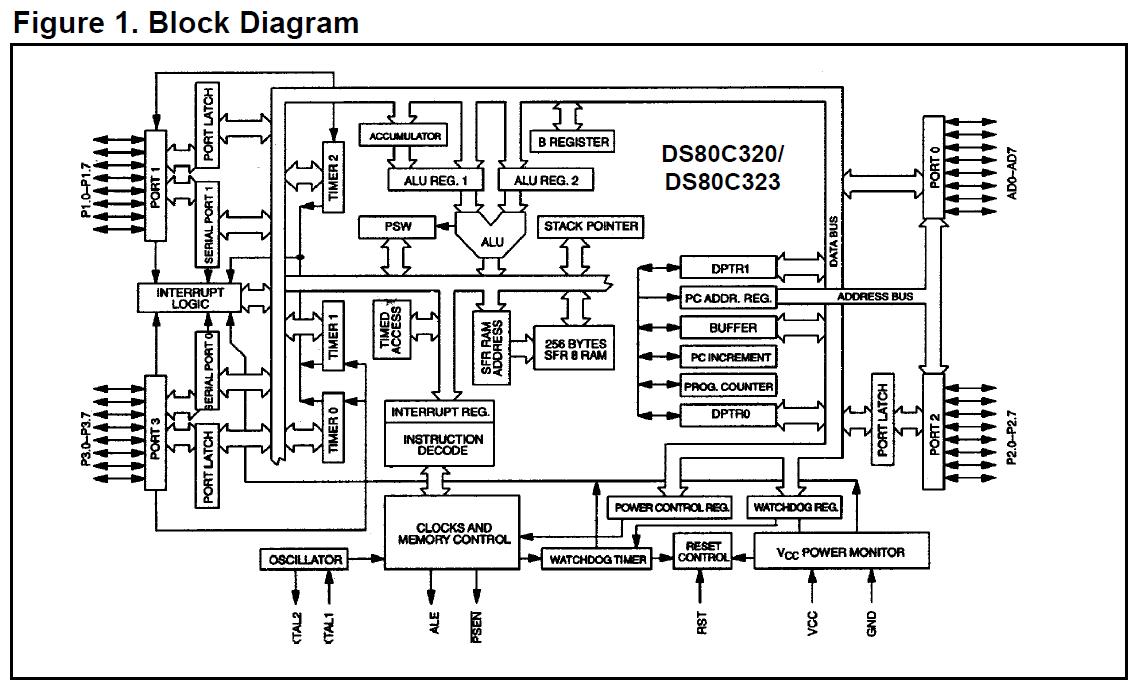

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DS80C323-QCD
DS80C323-QCD

Maxim Integrated Products

8-bit Microcontrollers (MCU) High-Speed Low-Power

Data Sheet

0-690: $2.41
690-1000: $2.07
DS80C323-QCD/T&R
DS80C323-QCD/T&R

Maxim Integrated Products

8-bit Microcontrollers (MCU) High-Speed Low-Power

Data Sheet

0-500: $2.50
500-690: $2.50
690-1000: $2.15
DS80C323-QCD+
DS80C323-QCD+

Maxim Integrated Products

8-bit Microcontrollers (MCU) High-Speed Low-Power

Data Sheet

0-1: $4.94
1-25: $3.32
25-50: $2.40
50-100: $2.38
DS80C323-QCD+T&R
DS80C323-QCD+T&R

Maxim Integrated Products

8-bit Microcontrollers (MCU) High-Speed Low-Power

Data Sheet

0-345: $2.50
345-500: $2.46
