Product Summary

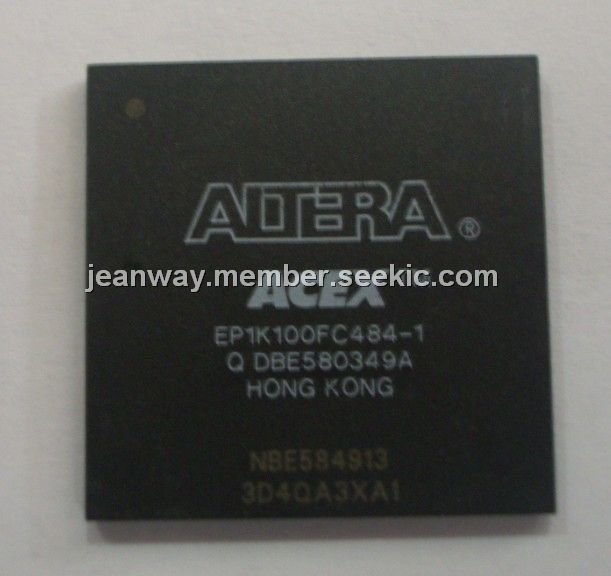

The EP1K100FC484-1 Altera enhanced configuration device is a single-device, high-speed, advanced configuration solution for very high-density FPGAs. The core of an enhanced configuration device is divided into two major blocks: a configuration controller and a flash memory. The flash memory of EP1K100FC484-1 is used to store configuration data for systems made up of one or more Altera FPGAs. Unused portions of the EP1K100FC484-1 can be used to store processor code or data that can be accessed via the external flash interface after FPGA configuration is complete.
Parametrics
EP1K100FC484-1 absolute maximum ratings: (1)Supply voltage: -0.2 to 4.6 V With respect to ground ; (2)DC input voltage: -0.5 to 3.6 V With respect to ground; (3)DC VCC or ground current: 100 mA; (4)DC output current, per pin: -25 to 25 mA; (5)Power dissipation: 360 mW; (6)Storage temperature No bias: -65 to 150 ℃; (7)Ambient temperature Under bias -65 to 135 ℃; (8)Junction temperature Under bias: 135 ℃.
Features
EP1K100FC484-1 features: (1)Single-chip configuration solution for Altera ACEX 1K, APEX 20K (including APEX 20K, APEX 20KC, and APEX 20KE), APEX II, Arria GX, Cyclone, Cyclone II, FLEX 10K (including FLEX 10KE and FLEX 10KA), Mercury, StratixR II, and Stratix II GX devices; (2)Contains 4-, 8-, and 16-Mbit flash memories for configuration data storage: On-chip decompression feature almost doubles the effective configuration density; (3)Standard flash die and a controller die combined into single stacked chip package; (4)External flash interface supports parallel programming of flash and external processor access to unused portions of memory.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1K100FC484-1 |
|
IC ACEX 1K FPGA 100K 484-FBGA |
Data Sheet |
|
|
||||||
|
EP1K100FC484-1N |
|
IC ACEX 1K FPGA 100K 484-FBGA |
Data Sheet |
|
|
||||||
