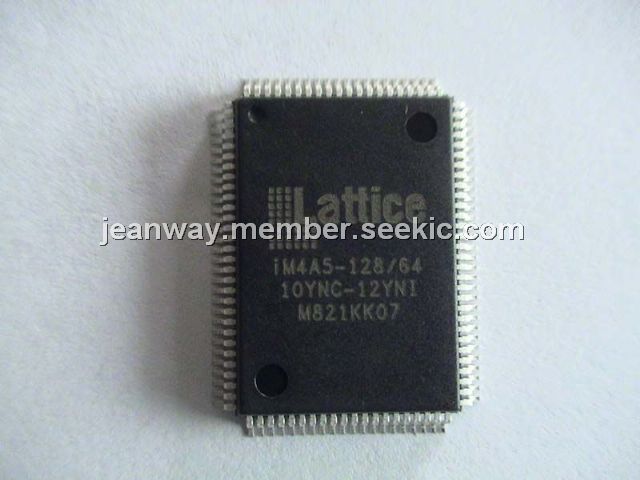

Product Summary

The IM4A5-128/64-10YNC-12YNI belongs to ispMACH 4A family from Lattice which offers an exceptionally flexible architecture and delivers a superior Complex Programmable Logic Device (CPLD) solution of easy-to-use silicon products and software tools. The overall benefits of the IM4A5-128/64-10YNC-12YNI for users are a guaranteed and predictable CPLD solution, faster time-to-market, greater flexibility and lower cost. The ispMACH 4A devices offer densities ranging from 32 to 512 macrocells with 100% utilization and 100% pin-out retention.

Parametrics

IM4A5-128/64-10YNC-12YNI maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +100℃; (3)Device Junction Temperature: +130℃; (4)Supply Voltage with Respect to Ground: -0.5 V to +7.0 V; (5)DC Input Voltage: -0.5 V to VCC + 0.5 V; (6)Static Discharge Voltage: 2000 V; (7)Latchup Current (TA = -40℃ to +85℃): 200 mA.

Features

IM4A5-128/64-10YNC-12YNI features: (1)High-performance, E2CMOS 3.3-V and 5-V CPLD families; (2)Flexible architecture for rapid logic designs; (3)High speed; (4)32 to 512 macrocells; 32 to 768 registers; (5)44 to 388 pins in PLCC, PQFP, TQFP, BGA, fpBGA and caBGA packages; (6)Flexible architecture for a wide range of design styles; (7)Advanced capabilities for easy system integration; (8)Lead-free package options.

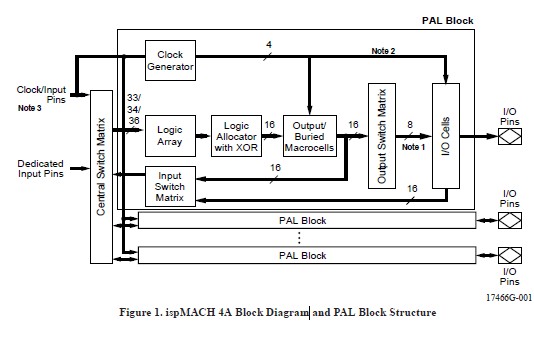

Diagrams
