Product Summary

The KSA1015-GR is a low frequency amplifier.

Parametrics

KSA1015-GR absolute maximum ratings: (1)Collector-Base Voltage: -50 V; (2)Collector-Emitter Voltage: -50 V; (3)Emitter-Base Voltage: -5 V; (4)Collector Current: -150 mA; (5)Base Current: -50 mA; (6)Collector Power Dissipation: 400 mW; (7)Junction Temperature: 125 ℃; (8)Storage Temperature: -65 ~ 150 ℃.

Features

KSA1015-GR features: (1)Collector-Base Voltage : VCBO= -50V; (2)Complement to KSC1815.

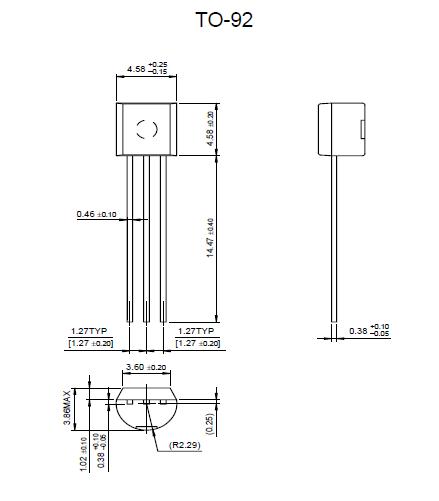

Diagrams
