Product Summary

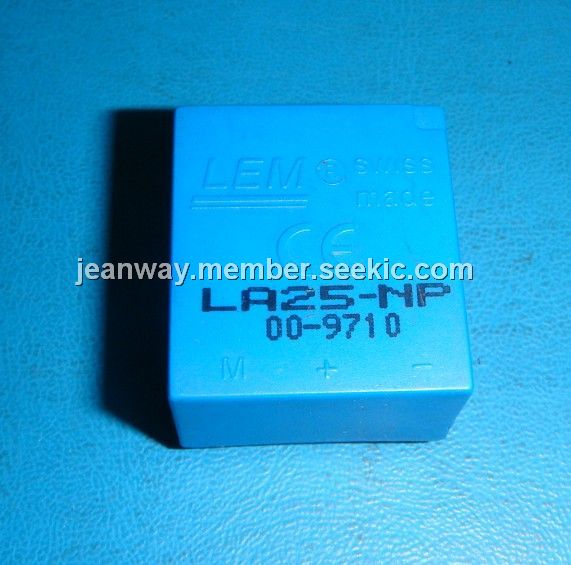

The Current Transducer LA 25-NP is for the electronic measurement of currents : DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit).
Parametrics
LA25-NP absolute maximum ratings: (1)IPN, Primary nominal r.m.s. current: 25 At; (2)IP, Primary current, measuring range: 0 to ± 36 At; (3)ISN, Secondary nominal r.m.s. current: 25 mA; (4)KN Conversion ratio: 1-2-3-4-5 : 1000; (5)VC, Supply voltage (± 5 %): ± 15 V; (6)IC Current consumption: 10 + IS mA; (7)Vd R.m.s. voltage for AC isolation test, 50 Hz, 1 mn: 2.5 kV; (8)Vb R.m.s. rated voltage, safe separation: 600 V; basic isolation: 1700 V.
Features
LA25-NP features: (1)Closed loop (compensated) multirange current transducer using the Hall effect; (2)Insulated plastic case recognized according to UL 94-V0.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LA25-NP |
Other |
|
Data Sheet |
Negotiable |
|
||||
