Product Summary
The LM4873MTE is a dual bridge-connected audio power amplifier which, when connected to a 5V supply, will deliver 2.1W to a 4Ω load (Note 1) or 2.4W to a 3Ω load (Note 2)with less than 1.0% THD+N. In addition, the headphone input pin allows the amplifiers to operate in single-ended mode to drive stereo headphones. A Mux Control pin toggles between the two stereo sets of amplifier inputs, allowing for two selectable amplifier closed-loop responses.
Parametrics
LM4873MTE absolute maximum ratings: (1)Supply Voltage 6.0V; (2)Storage Temperature -65℃ to +150℃; (3)Input Voltage -0.3V to VDD +0.3V; (4)Power Dissipation (Note 14) Internally limited; (5)ESD Susceptibility (Note 15) 2000V; (6)ESD Susceptibility (Note 16) 200V; (7)Junction Temperature 150℃.
Features
LM4873MTE features: (1)Input mux control and two separate inputs per channel; (2)Stereo headphone amplifier mode; (3)“Click and pop” suppression circuitry; (4)Thermal shutdown protection circuitry; (5)Exposed-DAP TSSOP and TSSOP packaging available.

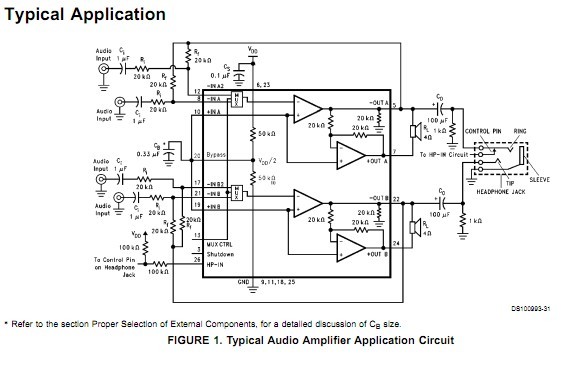

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LM4873MTE/NOPB |
![]() National Semiconductor (TI) |
![]() Audio Amplifiers |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() LM4873MTE-1 |
![]() |
![]() IC AMP AUDIO PWR 3W STER 28TSSOP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() LM4873MTEX/NOPB |
![]() National Semiconductor (TI) |
![]() Audio Amplifiers |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() LM4873MTEX |
![]() National Semiconductor (TI) |
![]() Audio Amplifiers |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() LM4873MTEX-1 |
![]() |
![]() IC AMP AUDIO PWR 3W STER 28TSSOP |
![]() Data Sheet |
![]() Negotiable |
|
