Product Summary

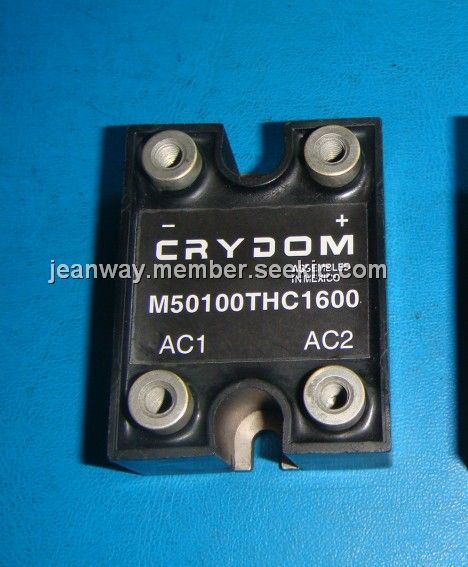

The M50100THC1600 is a power module.

Parametrics

M50100THC1600 absolute maximum ratings: (1)Maximum DC Output Current (Tc=85℃), ID: 100A; (2)Maximum Voltage Drop @ Amps Peak, VF: 1.2V @ 100 A; (3)Operating Junction Temperature Range, TJ: -40 to 125℃; (4)Repetitive Peak Reverse Voltage (AC Line Nominal) [Vpk], VRRM: 800 (280 VAC), 1200 (480 VAC), 1400 (530 VAC), 1600 (600 VAC); (5)Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz) [A], ITSM 1500; (6)Maximum IT for Fusing (t=8.3ms) [A2sec] IT: 9350A; (7)Maximum Thermal Resistance, Junction to Ceramic Base per Chip [℃/W], RJC: 0.3℃/W; (8)Isolation Voltage [Vrms], VISOL: 2500.

Features

M50100THC1600 features: (1)High Surge Current Rectifier Circuits ; (2)5 Different Circuits to Choose from ; (3)Up to 1600 Volt Blocking Standard.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M50100THC1600
M50100THC1600
Crydom
Discrete Semiconductor Modules 100Amps 600VAC THC Circuit Power Module
Data Sheet
0-1: $57.83
1-10: $55.12
10-25: $53.47
25-50: $52.58
