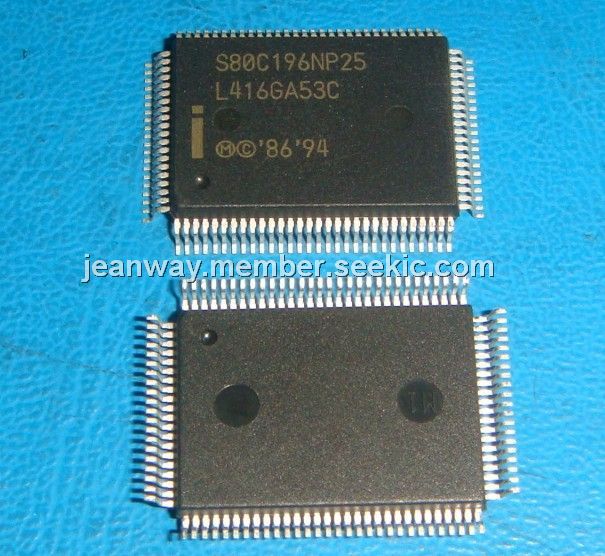

S80C196NP25

CHMOS 16-bit microcontroller, 25 MHz, 4.5V to 5.5 V, QFP, Register-register Architecture, 32 I/O Port Pins

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: S80C196NP25

Brand:: Intel Corporation - Intel | Pack: QFP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:S80C196NP25
US $1.00 - 2.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The S80C196NP25 is a 16-bit MCS 96 microcontroller. The device features 1 Mbyte of linear address space, a demultiplexed bus, and a chip-select unit. The external bus can dynamically switch between multiplexed and demultiplexed operation. When operating at 25 MHz in demultiplexed mode, the S80C196NP25 can access a 100 ns memory device with zero wait states.

Parametrics

S80C196NP25 absolute maximum ratings: (1)Storage Temperature:–60℃ to +150℃; (2)Supply Voltage with Respect to VSS:–0.5V to +7.0V; (3)Power Dissipation:1.5W.

Features

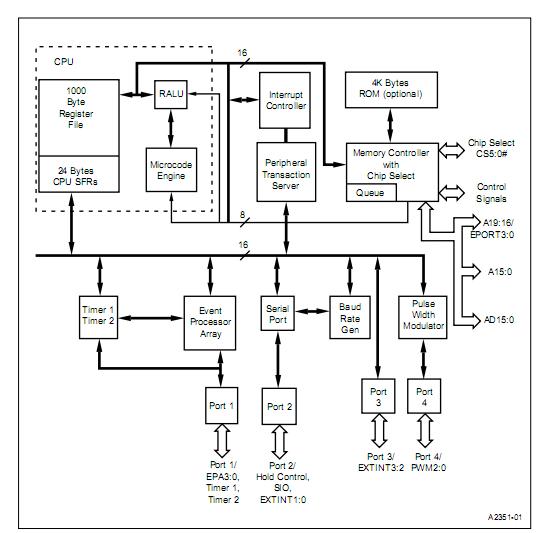

S80C196NP25 features: (1)25 MHz Operation at 4.5–5.5 Volts; (2)1 Mbyte of Linear Address Space; (3)Optional 4 Kbytes of ROM; (4)1000 Bytes of Register RAM; (5)Register-register Architecture; (6)32 I/O Port Pins; (7)16 Prioritized Interrupt Sources; (8)4 External Interrupt Pins and NMI Pin; (9)2 Flexible 16-bit Timer/Counters with Quadrature Counting Capability; (10)3 Pulse-width Modulator (PWM) Outputs with High Drive Capability; (11)Full-duplex Serial Port with Dedicated Baud-rate Generator; (12)Peripheral Transaction Server; (13)Event Processor Array (EPA) with 4 High-speed Capture/Compare Channels; (14)1.12 μs 16 × 16 Unsigned Multiplication; (15)1.92 μs 32/16 Unsigned Division; (16)100-pin SQFP or 100-pin QFP Package; (17)Complete System Development Support; (18)High-speed CHMOS Technology.
