Product Summary

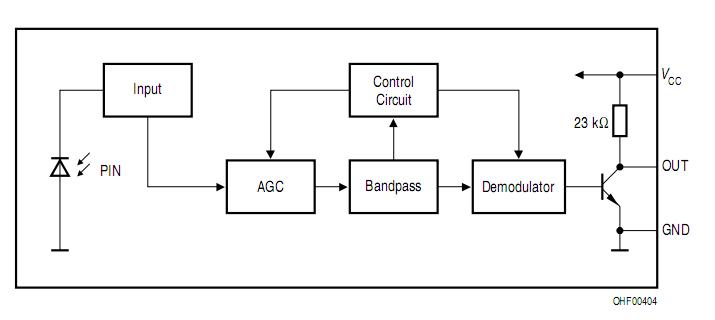

The SFH5110-33 is a IR receiver to detect light from infrared remote control systems. The IC includes photodiode, preamplifier, automatic gain control, bandpass and demodulator. The black-colored package is designed as daylight-cutoff filter. The applications of the SFH5110-33 are Remote control module for TV sets, VCRs, hi-fi audio receivers, SAT receivers and compact disk players, safe data transmission error tolerant codes.
Parametrics
SFH5110-33 absolute maximum ratings: (1)Operation and storage temperature range:-30℃ to +100℃; (2)Supply voltage:6.3V; (3)Output voltage:6.3V; (4)Output current:3mA; (5)Total power dissipation, TA ≤ 85℃:50mW.
Features
SFH5110-33 features: (1)IC with monolithic integrated photodiode (single chip solution); (2)Especially suitable for applications of 940 nm; (3)High sensitivity; (4)Various carrier frequencies available; (5)TTL and CMOS compatibility; (6)Output: active Low.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SFH5110-33 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SFH507 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH5110 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH5110-33 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH5111 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH5140 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH520 |
Other |
|
Data Sheet |
Negotiable |
|
||||
