Product Summary

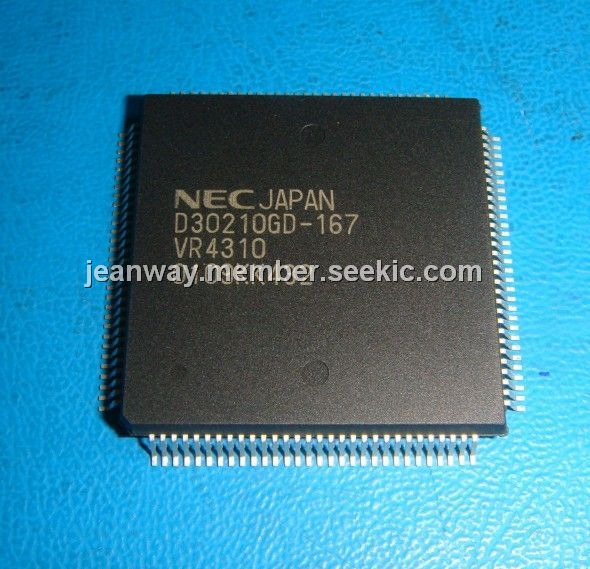

The UPD30210GD-167 is a high-performance, 64-bit RISC (Reduced Instruction Set Computer) type VR SeriesTM microprocessor employing the RISC architecture developed by MIPSTM Technologies Inc. The applications of the UPD30210GD-167 are Embedded controllers, Page printer controllers, Amusement game machines, etc.
Parametrics
UPD30210GD-167 absolute maximum ratings: (1)Supply voltage:–0.5V to +4.0V; (2)Input voltageNote:–0.5V to VDD + 0.3V, Pulse of less than 10 ns:–1.5V to VDD + 0.3V; (3)Operating case temperature:0℃ to +85℃; (4)Storage temperature:–65℃ to +150℃.
Features
UPD30210GD-167 features: (1)Employs 64-bit RISC MIPS architecture; (2)High-speed operation processing; (3)5-stage pipeline processing; (4)High-speed execution of integer and floating-point operations; (5)100 SPECint92, 75 SPECfp92, 221 MIPS at 167 MHz operation ; (6)Instruction set compatible with VR4000TM Series (conforms to MIPS-I/II/III); (7)On-chip cache memory (Instruction: 16 Kbytes, Data: 8 Kbytes); (8)32-bit address/data multiplexed bus facilitating system design ; (9)Low power consumption: 1.9 W (TYP.) (at 133 MHz operation), 2.4W (TYP.) (at 167 MHz operation); (10)Supply voltage: 3.0 to 3.5 V.

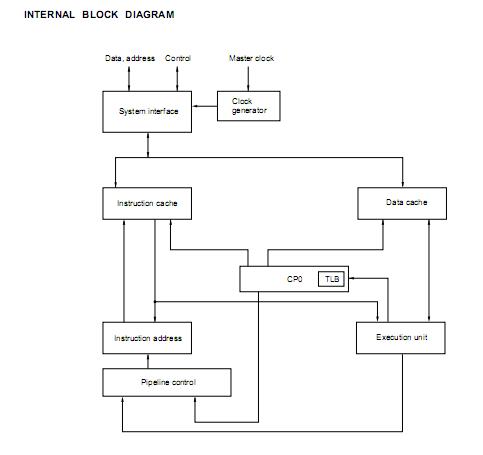

Diagrams
 |
