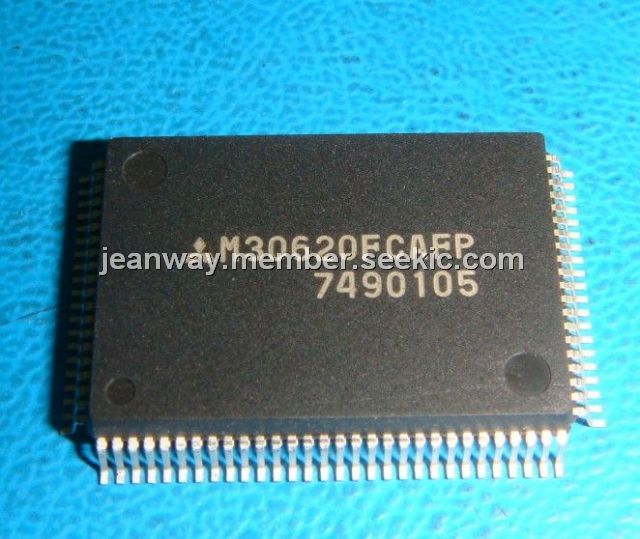

Product Summary

The M30620FCAFP single chip microcomputer is built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. The single-chip microcomputer operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, it is capable of executing instructions at high speed.

Parametrics

M30620FCAFP absolute maximum ratings: (1)VCC, Supply voltage: -0.3 to 6.5V; (2)AVcc, Analog supply voltage: -0.3 to 6.5V; (3)Input voltage: -0.3 to Vcc+0.3V; (4)Output voltage: -0.3 to Vcc+0.3V; (5)Power dissipation: 300mW; (6)Operating ambient temperature: -20 to 85℃ .

Features

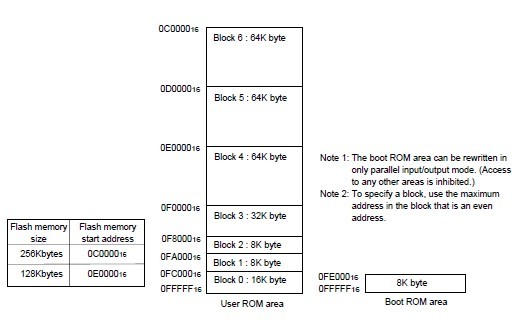

M30620FCAFP features: (1)Memory capacity: ROM (See Figure 1.1.4. ROM Expansion); RAM 3K to 20K bytes; (2)Shortest instruction execution time: 62.5ns (f(XIN)=16MHZ, VCC=5V); 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version; (3)Supply voltage: 4.2V to 5.5V (f(XIN)=16MHZ, without software wait) : Mask ROM, flash memory 5V version; 2.7V to 5.5V (f(XIN)=10MHZ with software one-wait) : Mask ROM, flash memory 5V version; (4)Low power consumption: 25.5mW ( f(XIN)=10MHZ, with software one-wait, VCC = 3V); (5)Interrupts: 25 internal and 8 external interrupt sources, 4 software; (6)Multifunction 16-bit timer: 5 output timers + 6 input timers; (7)Serial I/O: 5 channels (3 for UART or clock synchronous, 2 for clock synchronous); (8)DMAC: 2 channels (trigger: 24 sources); (9)Watchdog timer: 1 line; (10)Programmable I/O: 87 lines; (11)Chip select output: 4 lines.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M30620FCAFP#D3
M30620FCAFP#D3


IC M16C MCU FLASH 128K 100LQFP

Data Sheet

0-1: $24.16
M30620FCAFP#D5
M30620FCAFP#D5


IC M16C MCU FLASH 128K 100LQFP

Data Sheet

0-1: $13.00
M30620FCAFP#U3
M30620FCAFP#U3


IC M16C MCU FLASH 100QFP

Data Sheet

0-1: $24.16
M30620FCAFP#U5
M30620FCAFP#U5


IC M16C MCU FLASH 100QFP

Data Sheet

0-1: $23.00
